Training Board

Every lifting app I tried wanted a subscription, a social feed and my email address, and none of them could show me what the movement actually looks like. There is a public dataset of 1,324 exercises with an animated GIF and numbered instructions for each one. Training Board is that dataset turned into a scoreboard you log against.

The loop is short on purpose. Open the board, see today's volume and what this week has covered, tap an exercise, and log a set into a form already pre-filled from the last time you did it. The animation plays while you type. Below the logger sit today's sets, your best set ever, what you did last session, and other exercises for the same muscle for when the machine is taken.

Three constraints shaped everything. It is used on a phone, in a gym, one-handed, so navigation sits where a thumb already is and the screen has to survive being read at arm's length. Rest is part of training, so no mechanic may punish a rest day. And the catalogue is 119 MB of animation, so the network cost of a card is the whole design problem behind the grid.

It ships as a Next.js 16 app on Appwrite, installable to a home screen, deployed to a VPS with Docker Compose. Rows, files and accounts all live in Appwrite, so the container holds no state and there is nothing on the server to back up.

Four problems took most of the time, and none of them were the features.

Data ownership was the first. The app went multi-user early, and access control alone turned out not to be enough. The admin rule returned an unconstrained true, so an unfiltered read handed the admin every member's sets merged into their own scoreboard. All-time volume read 21.9 tonnes, which was 11.0 of mine plus a member's. The bug was invisible because the number was plausible. Every query now scopes to an owner by default and takes an explicit owner for the admin views, and a test fails the build if a query touching a private table is written without an owner constraint.

The phone was the second, and it broke in ways a desktop never shows. At 390px the grid fell to one column, so 1,324 cards became a 407,559px page with 12,167 DOM nodes. The content-visibility size hint claimed 288px against a real 427px, an error of 139px per card, so the browser was permanently re-estimating the scroll height and tapping a card opened nothing: the content moved under your finger between the touch and the release. Separately, my own service worker stalled every image after the first, because an installed PWA gets a much smaller cache quota than a browser tab and an unhandled cache.put rejection left a response clone abandoned, which makes the browser buffer the whole body.

The third was choosing mechanics that do not lie. A daily streak punishes correct behaviour in a sport where rest is programmed, so the headline streak counts consecutive weeks that hit your own session target. Auto progression, the feature every lifting app adds, is deliberately absent: a target weight seeds the logger and is never applied on its own, because nothing in the data knows whether the last session was hard.

The fourth was the migration. Payload gave a good admin panel and a Postgres container to run alongside the app. Moving to Appwrite meant giving up the framework-native access control the ownership work was built on, reshaping two nested data structures that flat columns cannot hold, and finding out which query shapes the API actually accepts, which is not what the docs imply.

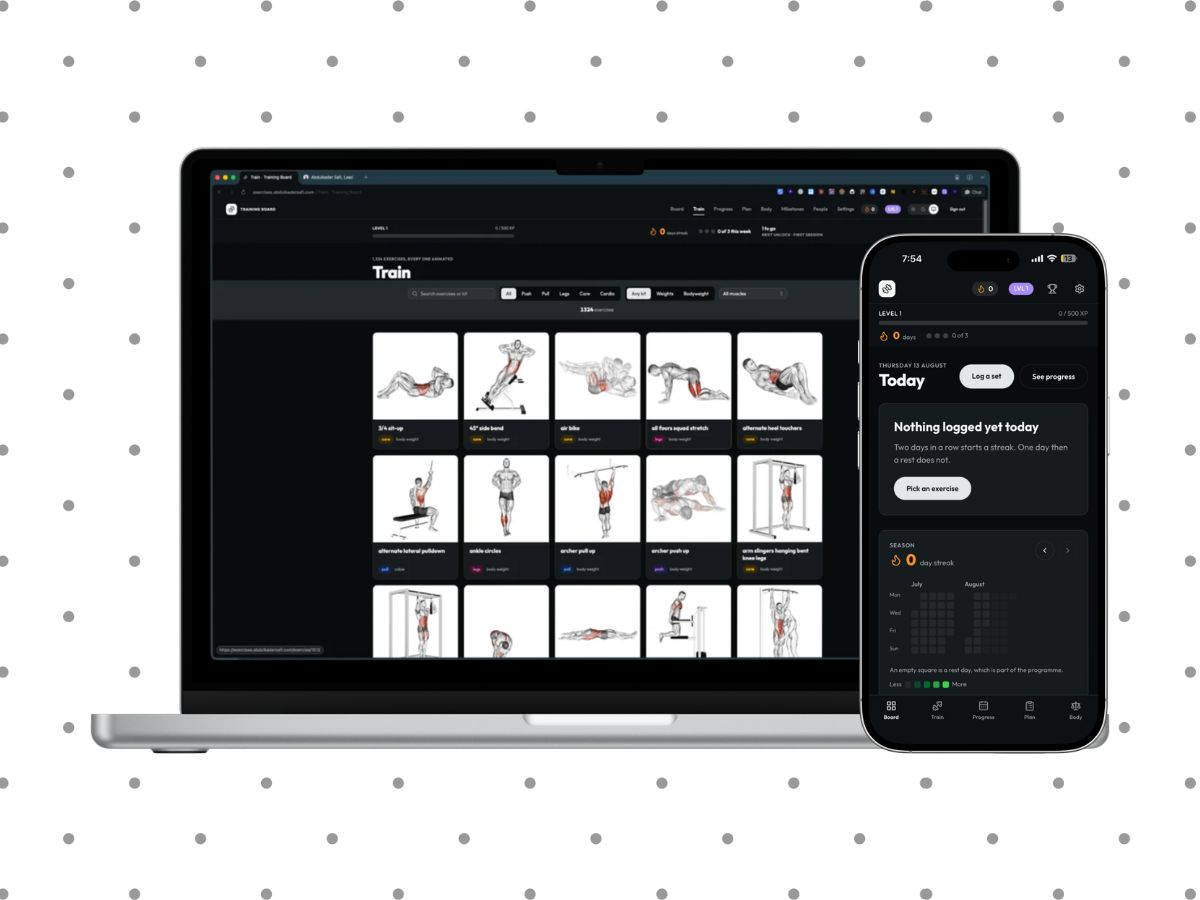

The board is a progression view: an XP and level strip under the nav, a season grid of the last two months by training intensity, week streak, and what the week has covered by muscle. The catalogue moved to its own route, so reaching your own training no longer means scrolling past 1,324 cards. Every filter lives in the URL, so opening an exercise and pressing back returns you to the same view.

Twenty-eight milestones are written as facts about the training rather than prizes: "100 sessions", not "Century Club". Each carries its rule in plain language, and a test asserts that, because a milestone whose rule is legible can be aimed at. Crossing one takes the whole screen once, at hero scale, with a single button back to the set. A unique index on owner and key is the real guard against a double award, and the create swallows the conflict, because two logs racing is a lost race rather than an error.

The phone work is a PWA with a manifest, generated icons and twelve iOS splash sizes, since iOS uses a startup image only on an exact media query match. The service worker is thirty lines, caps its cache at 250 entries, treats every cache operation as optional, and consumes the response clone inside waitUntil. The rule it follows: a service worker must never be worse than no service worker. Verified with the network fully off, a previously viewed animation came back from cache at 118 KB and decoded. The grid is two columns on a phone, paged at 48 with a link that keeps the current filters, which took the page from 407,559px to 8,552px and made taps land.

The Appwrite migration took a day. Programme days were nested arrays two levels deep, so they are stored as JSON and the referenced exercises hydrated on read. Body scans had two nested groups of five segment numbers, now ten flat columns folded back into groups on read. Auth moved to Appwrite Account with the session secret in a first-party HttpOnly cookie, because Appwrite's own cookie is bound to its domain. Reads run through an API key that bypasses row permissions entirely, so the deleted access tests were replaced by a source guard that fails on any query against a private table with no owner constraint.

Three query shapes only a live instance tells you about: equal on an array column is rejected outright, so the muscle filter uses contains; a fulltext search inside an or group returns a server error, so free text is three contains instead; and cursor paging is strictly sequential, which put fourteen round trips in series over a five second test timeout, so the first page reports the total and the rest are fetched in parallel off it.

Deployment is a Makefile over Docker Compose. make deploy rsyncs and rebuilds and never touches a volume, make backup pulls a dump and a media tarball, and make destroy is the only target that removes data, refuses to run unless you type the word, and says what it is about to delete first.
